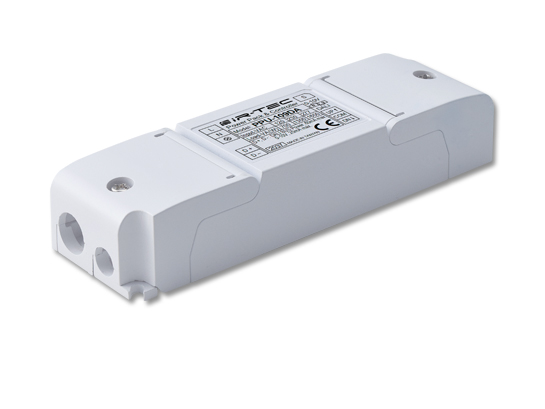

PPU-109DA
Power Pack & Controller

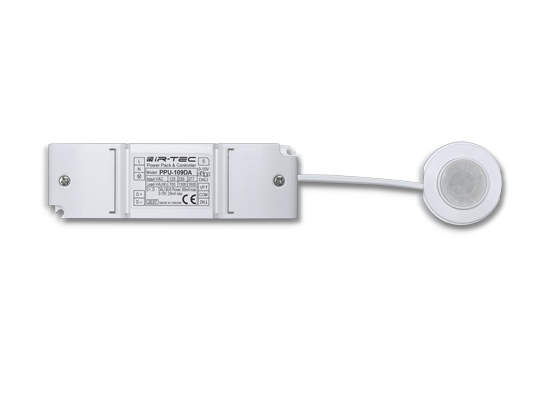

The PPU-109DA is a power pack and controller designed to provide standalone or network based smart lighting control with the connection of IR-TEC's SmartDALI sensors. This power pack can be used to control DALI, 0/1-10V or typical driver/ballast available in the market.


Power: 120-277 VAC
Max load: 6A
Output: DALI or switched line voltage (hybrid) & 0-10V
Setting: None
Connection: RJ45 and terminal block
DC output: Bus power output: 16 VDC, 100mA max
Control signal: DALI or momentary contacts
Compliance: UKCA, CE
  • Class 2 switching mode power supply
  • 120/277 VAC universal voltage power
  • DALI bus power supply output for sensor operation
  • RJ connector enables easy sensor plug-in
  • Push in terminal for power & control wiring
  • Manual control momentary contact input
  • Hybrid Switching technology for HIC protection
  • Available with DALI, 0/1-10V, or typical driver
Product Information
PPU-109DA Datasheet
PPU-100DP/PPU-109DA Installation Instruction

Features

Power: 120-277 VAC
Max load: 6A
Output: DALI or switched line voltage (hybrid) & 0-10V
Setting: None
Connection: RJ45 and terminal block
DC output: Bus power output: 16 VDC, 100mA max
Control signal: DALI or momentary contacts
Compliance: UKCA, CE
  • Class 2 switching mode power supply
  • 120/277 VAC universal voltage power
  • DALI bus power supply output for sensor operation
  • RJ connector enables easy sensor plug-in
  • Push in terminal for power & control wiring
  • Manual control momentary contact input
  • Hybrid Switching technology for HIC protection
  • Available with DALI, 0/1-10V, or typical driver

Download

Product Information
PPU-109DA Datasheet
PPU-100DP/PPU-109DA Installation Instruction
