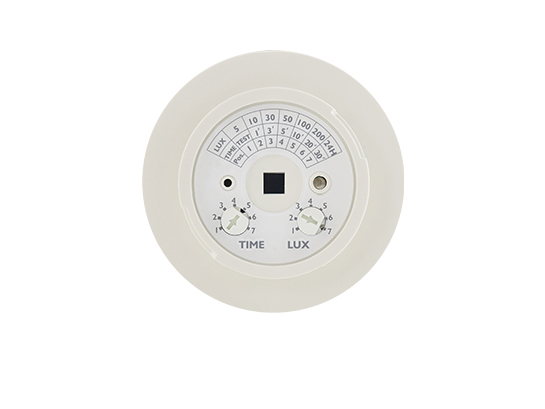

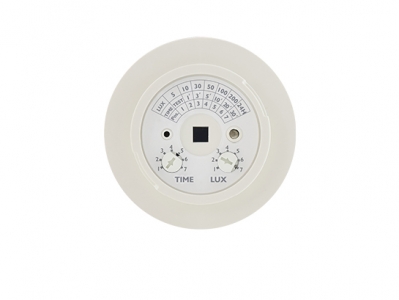

BOM‑5xx Series
Low Voltage Occupancy Sensor
The BOM type of the TRANS‑PIR sensor family are low voltage occupancy sensors designed to report the status of occupancy and ambient light level through two digital outputs for building energy management system (BEMS) control.
All TRANS‑PIR sensors are available with various mounting options and interchangeable lenses.
Models | Tech | ALS | Power | Output | Setting | Wiring | Control |
BOM‑514S a b | PIR | ● | 5‑12 VDC | DO2 | Accu‑Set pot | Terminal block | For BMS day/night bi‑level control |
BOM‑515S a b | PIR | ● | 12‑24 VDC | DO2 | Accu‑Set pot | Terminal block | For BMS day/night bi‑level control |
a - mount code b - lens code |
LEGENDS: PIR - Passive infrared DO2 - Digital output x 2 |
Mounting Options | Code | Bracket # | |
Fixture Integrated | F | -- | |
IP‑66 Fixture Integrated | W | -- | |
Fixture External | E | EMB‑500 | |
IP‑66 Fixture External | P | PMB‑500 | |
Ceiling Surface | S | SMB‑500 | |
Junction Box | C | CMB‑500 | |
Ceiling Recess | R | RMB‑500 | |
Lens Options | Code | Coverage | |
Standard Cone |
A | ||
Extra Wide Cone |
B | ||
High Bay Cone |
C | ||
Standard Flat Round |
D | ||
Extra Wide Dome |
F | ||
Aisle Way Arch (Not for IP-66) |
G | ||
High Bay Dome |
H | ||
Long Aisle Arch (Not for IP-66) |
L | ||
Models | Tech | ALS | Power | Output | Setting | Wiring | Control |
BOM‑514S a b | PIR | ● | 5‑12 VDC | DO2 | Accu‑Set pot | Terminal block | For BMS day/night bi‑level control |
BOM‑515S a b | PIR | ● | 12‑24 VDC | DO2 | Accu‑Set pot | Terminal block | For BMS day/night bi‑level control |
a - mount code b - lens code |
LEGENDS: PIR - Passive infrared DO2 - Digital output x 2 |
Mounting Options | Code | Bracket # | |
Fixture Integrated | F | -- | |
IP‑66 Fixture Integrated | W | -- | |
Fixture External | E | EMB‑500 | |
IP‑66 Fixture External | P | PMB‑500 | |
Ceiling Surface | S | SMB‑500 | |
Junction Box | C | CMB‑500 | |
Ceiling Recess | R | RMB‑500 | |
Lens Options | Code | Coverage | |
Standard Cone |
A | ||
Extra Wide Cone |
B | ||
High Bay Cone |
C | ||
Standard Flat Round |
D | ||
Extra Wide Dome |
F | ||
Aisle Way Arch (Not for IP-66) |
G | ||
High Bay Dome |
H | ||
Long Aisle Arch (Not for IP-66) |
L | ||
