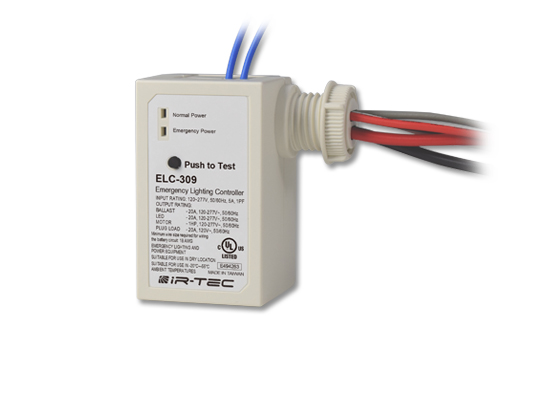

ELC‑309
Emergency Lighting Controller

The ELC‑309 Emergency Lighting Controller is a self‑contained device designed to allow standard lighting control devices (e.g. occupancy sensors, wall switches, dimmers or relay panels) to control the emergency lighting in conjunction with normal lighting in any area within a commercial or industrial building.


Power: 120-277 VAC
Max load: 20A
Output: Switched line voltage (hybrid)
Setting: None
Connection: Lead wire
Control signal: 24 VDC sourced, dry contact closure
Compliance: uL, CA24
  • Stop energy waste from 24 hours on emergency lighting
  • Integral push button available for emergency mode test
  • Can be wired as a control device or as a bypass device
  • Monitors utility power supply to the local lighting circuit
  • Allows connecting with remote activation control button
  • Hybrid switching technology protects from inrush current
  • LED indications for emergency and utility power supply
  • Provides absolutely reliable fail-to-on emergency lighting
  • UL 924 listed Emergency Lighting and Power Equipment
Product Information
ELC-309 Datasheet
ELC-309 Installation Instruction

Features

Power: 120-277 VAC
Max load: 20A
Output: Switched line voltage (hybrid)
Setting: None
Connection: Lead wire
Control signal: 24 VDC sourced, dry contact closure
Compliance: uL, CA24
  • Stop energy waste from 24 hours on emergency lighting
  • Integral push button available for emergency mode test
  • Can be wired as a control device or as a bypass device
  • Monitors utility power supply to the local lighting circuit
  • Allows connecting with remote activation control button
  • Hybrid switching technology protects from inrush current
  • LED indications for emergency and utility power supply
  • Provides absolutely reliable fail-to-on emergency lighting
  • UL 924 listed Emergency Lighting and Power Equipment

Download

Product Information
ELC-309 Datasheet
ELC-309 Installation Instruction
